MYCORRHIZAL ASSOCIATIONS: The Web Resource

Section 4. ARBUSCULAR MYCORRHIZAS



A. Introduction

Mycorrhizal associations produced by Glomeromycotan fungi are known as arbuscular mycorrhizas, or vesicular-arbuscular mycorrhizas (formerly also endomycorrhizas, or endotrophic mycorrhizas) and are abbreviated as VAM here. There is disagreement about whether arbuscular mycorrhizas or vesicular-arbuscular mycorrhizas is the most appropriate name to, because some fungi do not produce vesicles, but arbuscules are not consistently used to identify associations (i.e. they are absent in myco-heterotrophs and older roots) (see Section 10). These associations involve primitive fungi in the Glomeromycota and a wide diversity of plants, as explained at the end of this Section. Components of associations are illustrated below with details in the following sub-sections.

TopicMajor Sources
ImagesBrundrett et al. 1985, Brundrett & Kendrick 1988, Brundrett et al. 1996
Diagrams and definitionsBrundrett et al. 1996
Glomeromycotan fungiArthur Schüßler's site

Diagram with soil hyphae and mycorrhizal root (16KB)

A. Structures in Soil

Hyphae
A network of hyphae forms in the soil with thicker hyphae which function as conduits.
Absorptive hyphae
Thin highly branched hyphae which are thought to absorb nutrients.
Spores
Large (for a fungus) asexual spherical structures (20-1000+ µm diameter) formed on hyphae in soil, or in roots.

B. Structures in Roots

Hyphae
these are non-septate when young and ramify within the cortex.
Arbuscules
intricately branched haustoria in cortex cells.
Vesicles
storage structures formed by many fungi.


B. Looking at Associations

These associations are introduced by 3 diagrams showing increasing magnification views. Methods used to see mycorrhizal structures are described in Section 10.

Diagrams on this page are also available as pdf files to download.



Level 1. Whole Plants

looking at VAM roots (52KB)

iconMycorrhizal roots and the associated networks of hyphae are a major component of most soils, but cannot normally be seen with the naked eye (they are greatly exaggerated in this diagram and soil is omitted).

icon Samples of roots or soil can be collected, processed and viewed with a microscope as described below to detect mycorrhizas.



Level 2. The Dissecting Microscope

VAM with dissecting scope (32KB)

iconThe medium level of magnification provided by a dissecting microscope allows hyphae and spores to be seen after extraction from soil.

icon Mycorrhizal structures within root are normally not visible, unless roots have been cleared in hot alkali to make them transparent and stained with a dye that binds to fungal hyphae, as explained in Section 10. Observations at this level are normally used to quantify mycorrhizal associations.



Level 3. The Compound Microscope

Looking at VAM with a compound scope (24KB)

icon The higher level of magnification of a compound microscope allows mycorrhizal structures within roots to be confirmed and details of spore structure to be seen.

icon Root fragments that have been cleared and stained are examined to reveal structural details of mycorrhizas (explained in Section 10). Variations in these structures are sometimes used to identify fungi.

iconObservations at this scale allow fungi to be identified by spore structure. Spores are separated from soil by washing soil through very fine sieves, then concentrated by centrifugation in a dense medium such as a sugar solution.



C. Structures and Developmental Stages

VAM associations form when host roots and compatible fungi are both active in close proximity and soil conditions are favourable. The stages in root colonization by VAM fungi are illustrated below. Associations formed by species of Glomus, Gigaspora, Scutellospora and Acaulospora are shown. Terminology is explained in the glossary.



1. Soil Hyphae

Mycorrhizal associations may be initiated by spore germination as illustrated here. Hyphae may also originate from fragments of roots. In many cases there already is a pre-existing network of hyphae resulting from previous root activity. Hyphae resulting from spore germination have a limited capacity to grow and will die if they do not encounter a susceptible root within a week or so. Hyphae emerge from a germination shield within the spore in Scutellospora and Acaulospora species.

Spore germination (13KB)

Germinating hyphae which emerged several days after spores were extracted from dry soil. These spores are of Gigaspora decipiens (left) and Scutellospora cerradensis (right).

icon icon Spores germinated on membrane filters in contact with soil solution (Brundrett & Juniper 1995). Hyphae in the picture on the left were stained with Trypan blue. AV = accessory vesicles. GS = germination shield. Bars = 100 µm.

Diagram with soil hyphae and mycorrhizal root (12KB)

Soil hyphae, also known as extraradical or external hyphae, are filamentous fungal structures which ramify through the soil. They are responsible for nutrient acquisition, propagation of the association, spore formation, etc. VAM fungi produce different types of soil hyphae including thick "runner" or "distributive" hyphae as well as thin "absorptive" hyphae (Friese & Allen 1991). The finer hyphae can produce "branched absorptive structures" (BAS) where fine hyphae proliferate (Bago et al. 1998). Hyphae of Scutellospora and Gigaspora species produce clustered swellings with spines or knobs called auxiliary cells. Roles of hyphae are discussed in another section.

The network of hyphae in the soil is only connected to roots by the entry points that initiate mycorrhizal associations, as hyphae do not grow out of living roots.

Soil hyphae (16KB)

Mycorrhizal root system washed carefully from coarse sand to reveal the intact network with external hyphae (arrow) with spores (S) produced by Glomus mosseae.


icon icon
bar = 100 µm

Soil hyphae with auxiliary cells (14KB) Auxiliary cells (2K)

Darkly pigmented soil hyphae (H) of a Scutellospora species with auxiliary cells (AV).

icon
Bar = 100 µm

Soil hyphae from a single spore (13KB)

Soil hyphae produced by a single germinated spore of Gigaspora (arrow) used to start a mycorrhizal association. The hyphal network has produced accessory vesicles and is spreading through the root system of a clover plant.


icon
Bar = 100 µm



2. Root Contact and Penetration

Mycorrhizal associations start when soil hyphae respond to the presence of a root by growing towards it, establishing contact and growing along its surface. Next, one or more hyphae produce swellings called appressoria between epidermal cells. Root penetration occurs when hyphae from the appressoria penetrate epidermal or cortical cells to enter the root. These hyphae cross the hypodermis (through passage cells if these are present in an exodermis) and start branching in the outer cortex. Relevant root structural features are explained in Section 2.

icon

The images in the following sections are of cleared roots which have been stained with Chlorazol black E as explained in Section 10. Many images are from a study of the time course of VAM formation by Glomus versiforme in leek (Allium porrum) roots (Brundrett et al. 1985).

enty points on root surface (15KB)

Soil hyphae have produced 2 appressoria between epidermal cells (arrows). These are seen here in a surface view of a root with attached hyphae.

icon Whole mount focused on surface.
Bar = 100 µm

entry point (8KB)

Hyphae at an entry point (E) penetrating cortex cells (arrows) approximately 1 day after contact with the root.

icon Whole mount focused on outer cortex.
Bar = 100 µm

entry points in short cells (11KB)

Alternating long (L) and short (S) cells in the dimorphic exodermis of a Smilacina racemosa root. Hyphae of VAM fungi have penetrated unsuberised short cells (arrows).

icon Surface view of whole root.
Bar = 100 µm



3. Hyphal Proliferation in the Cortex

Aseptate hyphae spread along the cortex in both directions from the entry point to form a colony. Hyphae within root are initially without cross walls, but these may occur in older roots. Gallaud (1905) observed that VAM associations in different species formed two distinctive morphology types, which he named the Arum and Paris series after host plants. These are now known as linear (1.1) and coiling (1.2) associations respectively, as explained in Section 1. The differences between these two modes of spread within the root cortex are illustrated below. Both types of associations are important in ecosystems (Smith & Smith 1997).

  1. Linear (Arum) series associations where hyphae proliferate in the cortex by growing longitudinally between host cells. This occurs because hyphae grow through longitudinal intercellular air spaces that are present (Brundrett 2004).
  2. Coiling (Paris) series where hyphae spread by forming coils within cells because there are no continuous longitudinal air spaces.
Diagram of VAM colony (16KB)

A colony refers to hyphal growth within a root resulting from the same external hyphae (1 or more connected entry points). These are also called infection units.

colony with hyphae, arbuscules and vesicles

Part of a colony of a VAM fungus (Glomus sp.) with hyphae, arbuscules (A) and vesicles (V) growing from an entry point (arrow).


icon Highly magnfied views of a cleared and stained root

(i) Coiling (Paris) Arbuscular Mycorrhizas

These are associations where hyphae spread primarily by intracellular growth following a convoluted path through cortex cells. The resulting colonies of VAM fungi generally have a coiled appearance (Gallaud 1905, Brundrett & Kendrick 1998), but may have more digitate branching patterns (Widden 1996). Arbuscules may be restricted to a single layer of cells in the inner cortex.

Colony with hyphal coils

Colony of a VAM fungus spreading from the entry point (E) by convoluted hyphae (arrows) in the cortex of an Erythronium americanum root. Hyphal coils tend to occur in roots without prominent air channels.


icon A = arbuscule
Bar = 100 µm

Erythronium coil arbuscules

Higher magnification view of two arbuscules (A) growing directly from coils in adjacent root cortex cells of Erythronium americanum. Note how arbuscular branches arise from the same hyphae (arrows) which connect hyphae in adjacent cells.


icon
Bar = 10 µm

Arbuscules in the inner cortex

Arbuscules (A) and convoluted hyphae (arrow) in the inner cortex of an Asarum canadense root. Arbuscules only form in the innermost cortex cell layer next to the endodermis in this species.


icon
Bar = 10 µm

(ii) Linear (Arum) Arbuscular Mycorrhizas

These are associations where hyphae grow along longitudinal intercellular air channels between the walls of root cells. A relatively rapid parallel spread of intercellular hyphae may occur along these channels. The resulting colonies of VAM fungi have a linear appearance.

Longitudinal air cannels in a root Colony with linear hyphae

Intercellular air channels (arrows) in a whole mount of a living leek root (Allium porrum), shown for comparison with mycorrhizal development in the same host. These channels run continuously from the apex to the base of roots.

Longitudinal growth of hyphae of a VAM fungus (Glomus versiforme) along cortex air channels in a leek root. Note progressive development of arbuscules with increasing distance from the growing tips of hyphae.

Linear colony of VAM


4. Arbuscules

Arbuscules are intricately branched haustoria that formed within a root cortex cell. They were named by Gallaud (1905), because they look like little trees. Arbuscules are formed by repeated dichotomous branching and reductions in hyphal width, starting from an initial trunk hypha (5-10 um in diameter) and ending in a proliferation of fine branch hyphae (< 1 um diameter).

Arbuscules start to form approximately 2 days after root penetration (Brundrett et al. 1985). They grow inside individual cells of the root cortex, but remain outside their cytoplasm, due to invagination of the plasma membrane. Arbuscules are considered the major site of exchange between the fungus and host. This assumption is based on the large surface area of the arbuscular interface, but has not been confirmed (Smith 1995). Arbuscule formation follows hyphal growth, progressing outwards from the entry point. Arbuscules are short-loved and begin to collapse after a few days, but hyphae and vesicles can remain in roots for months or years.

Young arbuscule

Developing arbuscule of Glomus mosseae in a root cell with fine branch hyphae (arrows). The trunk (T) of this arbuscule branched from an intercellular hyphae.


icon Nomarski Interference Contrast Image
Bar = 10 µm

Arbuscule of Glomus

Mature arbuscule of Glomus showing trunk (T) and numerous fine branch hyphae (arrows).


Zoom in with roll-over


icon Nomarski Interference Contrast Image
Bar = 10 µm
Larger images

Arbucsule with densely packed branches

An arbuscule of Glomus versiforme in a root cortex cell with branch hyphae densely packed in the cortex cell of the host.


icon Nomarski Interference Contrast Image
Bar = 10 µm
Zoom in with roll-over

Arbuscule of Gigaspora

Arbuscule of Gigaspora margarita with an elongated trunk hypha (T) and tufts of fine branch hyphae (arrows). Note how this arbuscule differs from the Glomus arbuscules above.


icon Nomarski Interference Contrast Image
Bar = 10 µm
Zoom in with roll-over



5. Vesicles

Vesicles develop to accumulate storage products in many VAM associations. Vesicles are initiated soon after the first arbuscules, but continue to develop when the arbuscules senesce. Vesicles are hyphal swellings in the root cortex that contain lipids and cytoplasm. These may be inter- or intracellular. Vesicles can develop thick walls in older roots and may function as propagules (Biermann & Linderman 1983). Some fungi produce vesicles which are similar in structure to the spores they produced in soil, but in other cases they are different.

Vesicles of Glomus

Vesicles (V) produced by a Glomus species in a leek root. This root also contains many intercellular hyphae.


icon
Approx. 50 µm long

Acaulospora vesicles

Lobed vesicles of an Acaulospora species in a clover root.


icon Arrows = vesicles, A = arbuscules
Bar = 100 µm



6. Structural Diversity

It is possible to identify individual Glomeromycotan fungi by recognising characteristic root morphology patterns in roots (Abbott 1982). Identification of endophytes within roots is important for culture quality control, because contaminating fungi can be identified months before they sporulate (Brundrett et al. 1999). This procedure can also be used to determine the mycorrhizal inoculum potential of different fungi by growing trap plants in a soil.

It is also possible to identify Glomeromycotan fungi by colonization patterns in roots, but it is difficult to separate species. Morphological features that are important include variations in vesicles (size, shape, wall thickness, wall layers, position and abundance), hyphal branching patterns, the diameter and structure of hyphae (especially near entry points), and the staining intensity of hyphae (dark or faint). Characteristics of genera of Glomeromycotan fungi are listed and illustrated below (or downoad diagram).

Mycorrhizas produced by Glomus species:
Glomus VAM morphology (16KB)
  • Relatively straight hyphae ramify along the root cortex (if root anatomy permits), often producing "H" branches which result in simultaneous growth in 2 directions. Staining of these hyphae is usually relatively dark.
  • Arbuscules can be dense and compact.
  • Oval vesicles, which usually form between root cortex cells, are present in many cases. These vesicles persist in roots and often develop thickened and/or multi-layered walls.
Mycorrhizas produced by Scutellospora and Gigaspora species:
Scutellospora VAM morphology (20KB)
  • In Scutellospora VAM looping hyphae are often present near entry points. This genus has similar root colonisation patterns to Acaulospora, but hyphae in the cortex are generally thick-walled and stain darkly.
  • Internal vesicles are not present.
  • Arbuscular trunk hyphae normally are much longer and thicker than those of Glomus. Arbuscules appear wispy due to relatively long curving branches.
  • The root colonization pattern for Gigaspora is very similar to that for Scutellospora, with wide hyphae.
Mycorrhizas produced by Acaulospora species:
Acaulospora VAM morphology (16KB)
  • Entry point hyphae have characteristic branching patterns. Hyphae in the outer cortex generally are more irregularly branched, looped or coiled than for Glomus. Colonies in roots are often relatively small.
  • Internal hyphae are thin walled, often stain weakly and thus may be very hard to see, but may be visible due to rows of lipid droplets. External hyphae are usually also very hard to see.
  • Intracellular oil-filled vesicles, that are initially rectangular, but often become irregularly lobed due to expansion into adjacent cells, are a characteristic feature. These have thin walls and do not persist in roots.
Mycorrhizas produced by fine endophytes:

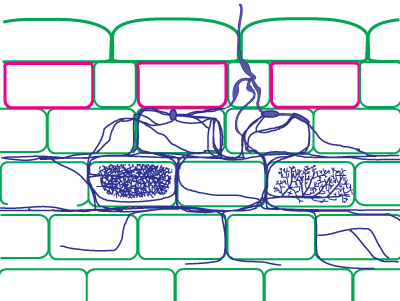

Fine endophyte VAM morphology (16KB)
  • These unusual fungi have been called Glomus tenue, but are substantially different from other Glomus species.
  • Fine endophytes can easily be distinguished by their very narrow hyphae (< 1 um in diameter) and net-like growth pattern in roots.
  • Small hyphal swelling (< 5 um) can occur near entry points and may be analogous to vesicles.


7. Spores

Spores form as swellings on one or more subtending hypha in the soil or in roots. These structures contain lipids, cytoplasm and many nuclei. Spores usually develop thick walls with more than one layer and can function as propagules. Spores may be aggregated into groups called sporocarps. Sporocarps may contain specialised hyphae and can be encased in an outer layer (peridium). Spores apparently form when nutrients are remobilised from roots where associations are senescing. They function as storage structures, resting stages and propagules. Spores may form specialised germination structures, or hyphae may emerge through the subtending hyphae or grow directly through the wall.

Diversity of spores in a single soil sample

iconThe following pictures show some of the fungi isolated into pot cultures started using spores or soil collected from Kakadu National Park in tropical northern Australia (Brundrett et al. 1999).

Spores on filter paper (16KB) Starting a culture from spores (12KB)
icon

Left: Spores separated from soil and sorted into categories based on size and colour. Right: Spores (S) on a piece of filter paper used to start a "pot culture" using pasteurised soil in which a host plant was grown .

icon

The images below show some of these spores viewed with a compound microscope. Inner wall layers have been revealed by crushing spores and by staining with Melzer's reagent (I2KI). All scale bars = 100 µm.

Spores of Glomus
Glomus spores (6KB)

Relatively small white spores of a Glomus species.

Spore of Glomus clarum sp.(3KB)

Spore of Glomus clarum which has a visible inner wall layer (arrow).

Glomus sporocarp (6KB)

Sporocarp of Glomus invermaium typical of the dead spores often found in field-collected soil.

Glomus sporocarp (6KB)

Living spores of Glomus invermaium from a pot culture.

Spores of Acaulospora
Spore of Acaulospora (8KB)

Acaulospora spore with deep pits in the outer wall and inner wall layers stained by Melzer's reagent.

Spore of Acaulospora (4KB)

Acaulospora spore with several inner wall layers (arrows). One layer has stained darkly with Melzer's reagent.

Spores of Scutellospora Species
Scutellospora spore (4KB)

White Scutellospora cerradensis spores with prominent brown germination shields.

Scutellospora spore (5KB)

Large black spore with deep pits of Scutellospora reticulata.



D. Arbuscular Mycorrhizal Fungi

Populations of arbuscular mycorrhizal fungi in the Glomeromycota are thought to have occupied the same soil habitats for millions of years, slowly adapting to changes in site conditions (Trappe & Molina 1986, Brundrett 2002). Many of these fungi have worldwide distribution patterns, but soil factors such as pH restrict the distribution of other taxa (Abbott & Robson 1991). Consequently, habitat information is as important as knowledge of the taxonomic identity of fungi, for comparing the results of experiments, or the selection of isolates for practical use.

The classification of the Glomeromycota is based on the structure of their soil-borne spores and DNA sequences. Accurate identification of these fungi often requires them to be isolated in cultures with host plants, to observe developmental stages, avoid the loss of diagnostic features and obtain healthy spores for DNA extraction. There now are many DNA sequences of Glomeromycotan fungi in databases such as Genbank. Information on Glomeromycotan systematics is available via the links below.

Arbuscular Mycorrhizal Fungi

Classification scheme for Glomeromycotan taxa

This classification follows Schüßler et al. (2001) with emendations of Oehl and Sieverding (2004), Walker and Schüßler (2004), Sieverding and Oehl (2006), and Spain et al. (2006). Visit Arthur Schüßler's site for further information and a family tree for Glomeromycotan fungi.

Taxonomic Hierarchy List of genera
  • Archaeosporales
    • Ambisporaceae
    • Archaeosporaceae
    • Geosiphonaceae
  • Diversisporales
    • Acaulosporaceae
    • Entrophosporaceae
    • Diversisporaceae
    • Gigasporaceae
    • Pacisporaceae
  • Glomerales
    • Glomeraceae
  • Paraglomerales
    • Paraglomeraceae
Family Genera
Acaulosporaceae Acaulospora, Kuklospora
Ambisporaceae Ambispora
Archaeosporaceae Archaeospora, Intraspora
Diversisporaceae Diversispora
Entrophosporaceae Entrophospora
Geosiphonaceae Geosiphon (not a mycorrhizal fungus)
Gigasporaceae Gigaspora, Scutellospora
Glomeraceae Glomus (Sclerocystis)
Pacisporaceae Pacispora
Paraglomeraceae Paraglomus

Links



E. Host Plants

Plant families which are nonmycorrhizal or have ectomycorrhizas are listed in the relevant sections of this website and it is expected that that the majority of other plant families have VAM associations. Families of Australian plants with VAM are listed in Section 8.



F. Terminology

This glossary defines some important terminology used to describe arbuscular mycorrhizas.

Appressoria
Hyphal swellings between two adjacent root epidermal cells. These are sites where hyphae first penetrate root cells by exerting pressure and/or enzymatic activity.
Arbuscules
These are intricately branched "haustoria" that form within root cortex cells that look like little trees (Gallaud 1905). Arbuscules are formed by repeated dichotomous branching and reductions in hyphal width from an initial trunk hypha that ends in a proliferation of very fine branch hyphae. They are considered to be the major site of exchange with the host plant. Old arbuscules collapse progressively until only the trunk remains. Collapsed arbuscules are sometimes called peletons.
Aseptate hyphae
These are hyphae which are without cross walls (coenocytic hyphae). Cross walls may form as hyphae age.
Auxiliary bodies
These structures, which are also called external vesicles /or accessory bodies, are clustered swellings on external hyphae. These are often ornamented by spines or knobs and are characteristic of Scutellospora and Gigaspora. These apparently do not function as propagules.
Colony
Hyphal colonization of a root resulting from one external hypha (these may arise from several adjacent entry points). These are often called infection units.
Dichotomous branching
A symmetrical branching pattern which occurs when two branches arise simultaneously from the tip of a hyphae, plant or fungus organ. Divergent branches grow at the same rate.
Internal hyphae, intraradical hyphae
Hyphae which grow within the cortex of a root to form a colony and later develop arbuscules and vesicles. These comprise the body (thallus) of a fungus in the root.
Intercellular hyphae
Hyphae which grow between the walls of adjacent root cells. These are in the root apoplast -- the zone outside the cytoplasm of cells.
Intracellular hyphae
Hyphae which grow within root cells. These penetrate the walls of cells and grow within them, but are separated from the cytoplasm by the plasma membrane.
Soil hyphae
These are also known as extraradical or external hyphae and are the filamentous structures which comprise the fungal thallus (body) in the soil. They acquire nutrients, propagate the association, produce spores and other structures. VAM fungi produce thick "runner" or "distributive" hyphae as well as thin, highly branched "absorptive" hyphae.
Spores
These are swollen structures with one or more subtending hyphae that form in the soil or in roots. Spores usually develop thick walls, which often have more than one layer. They can function as propagules. Spores of VAM fungi are sometimes called chlamydospores or azygospores.
Sporocarps
Aggregations of spores into groups, which may contain specialised hyphae and can be encased in an outer layer (peridium). Soil particles may be included in the spore mass. This term can be misleading, as the sporocarps produced by most Glomeromycotan fungi are small and relatively unorganised structures compared to those produced by larger fungi.
Vesicles
Intercalary (-o-) or terminal (-o) hyphal swellings formed on internal hyphae within the root cortex. These may form within or between cells. Vesicles accumulate lipids and may develop thick wall layers in older roots. The production and structure of vesicles varies between different genera of Glomeromycotan fungi. They are storage organs which may also function as propagules.
